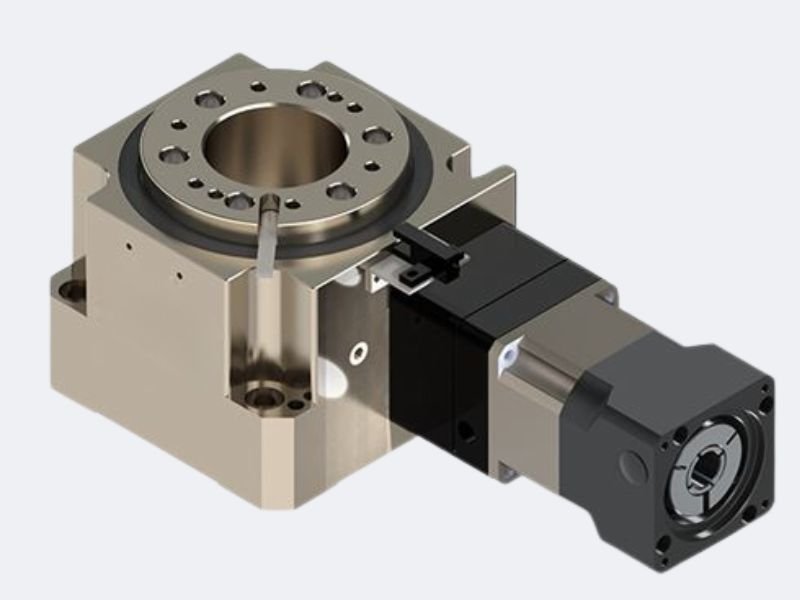

Right Angle Hollow Planetary Servo Gearboxes are advanced motion control solutions designed for compact installations where shaft-through mounting is required. These gearboxes combine planetary efficiency, bevel gear direction change, and hollow shaft design for maximum flexibility, high torque, and precise performance.
| Gear Type | Planetary + Bevel (Right Angle) |
|---|---|
| Shaft Type | Hollow Shaft |
| Gear Ratio | 3:1 to 100:1 |
| Efficiency | Up to 97% |
| Backlash | Low (≤ 8 arcmin) |
| Power Range | 0.1 kW to 50 kW |
| Mounting | Right Angle Hollow Shaft Mount |
| Material | Alloy Steel / Hardened Gears |
