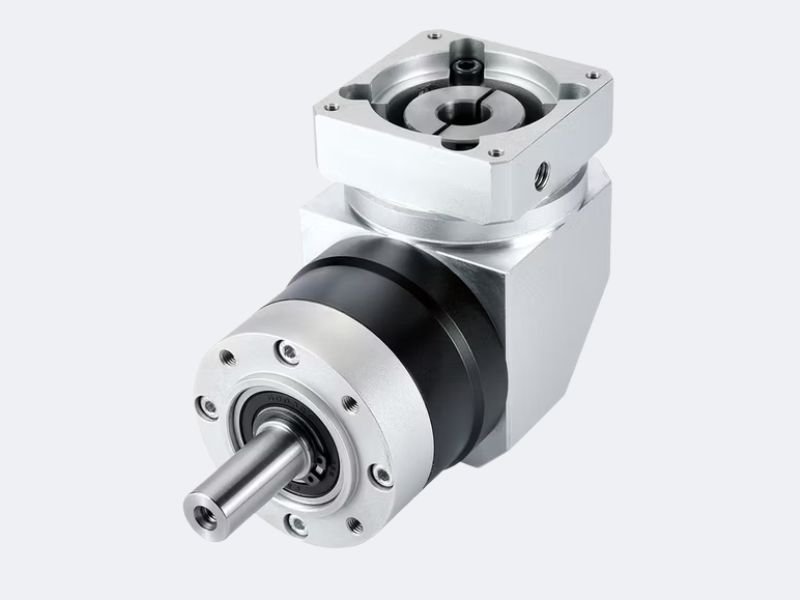

Right Angle Planetary Servo Gearboxes are designed for high-precision motion control where space constraints require a 90° power transmission. These gearboxes combine planetary gear efficiency with bevel gear direction change, ensuring compact design, high torque, and low backlash.
| Gear Type | Planetary + Bevel (Right Angle) |
|---|---|
| Gear Ratio | 3:1 to 100:1 |
| Efficiency | Up to 97% |
| Backlash | Low (≤ 8 arcmin) |
| Power Range | 0.1 kW to 50 kW |
| Mounting | Right Angle Servo Mount |
| Material | Alloy Steel / Hardened Gears |
